Mezzanine System Installation for Denver Auto Dealership Parts Department

The Challenge: Improve Parts Storage Access Without Expanding the Facility

A Denver auto dealership needed to improve access to parts inventory distributed across a 140-foot span in its parts department. Employees and mechanics were walking long distances to retrieve components, slowing service times and reducing operational efficiency.

The dealership required a solution that would increase storage capacity within the existing building footprint while improving organization and workflow. Expanding the facility was not a cost-effective option, so the solution needed to maximize vertical space.

The Solution: Custom Steel Mezzanine With Integrated Shelving

Western Storage and Handling designed and installed a custom steel mezzanine system that maximized vertical space while preserving the working floor area below.

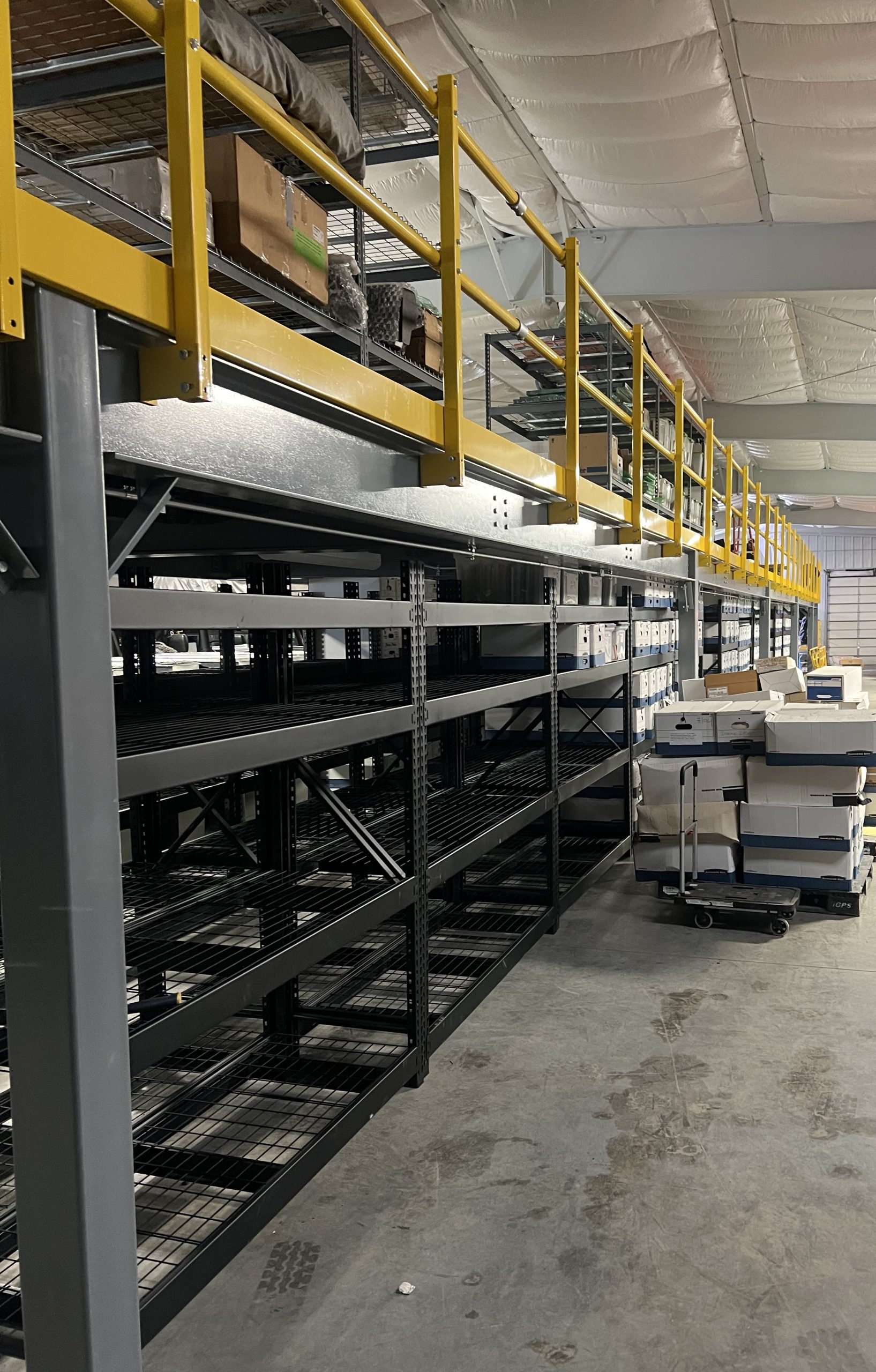

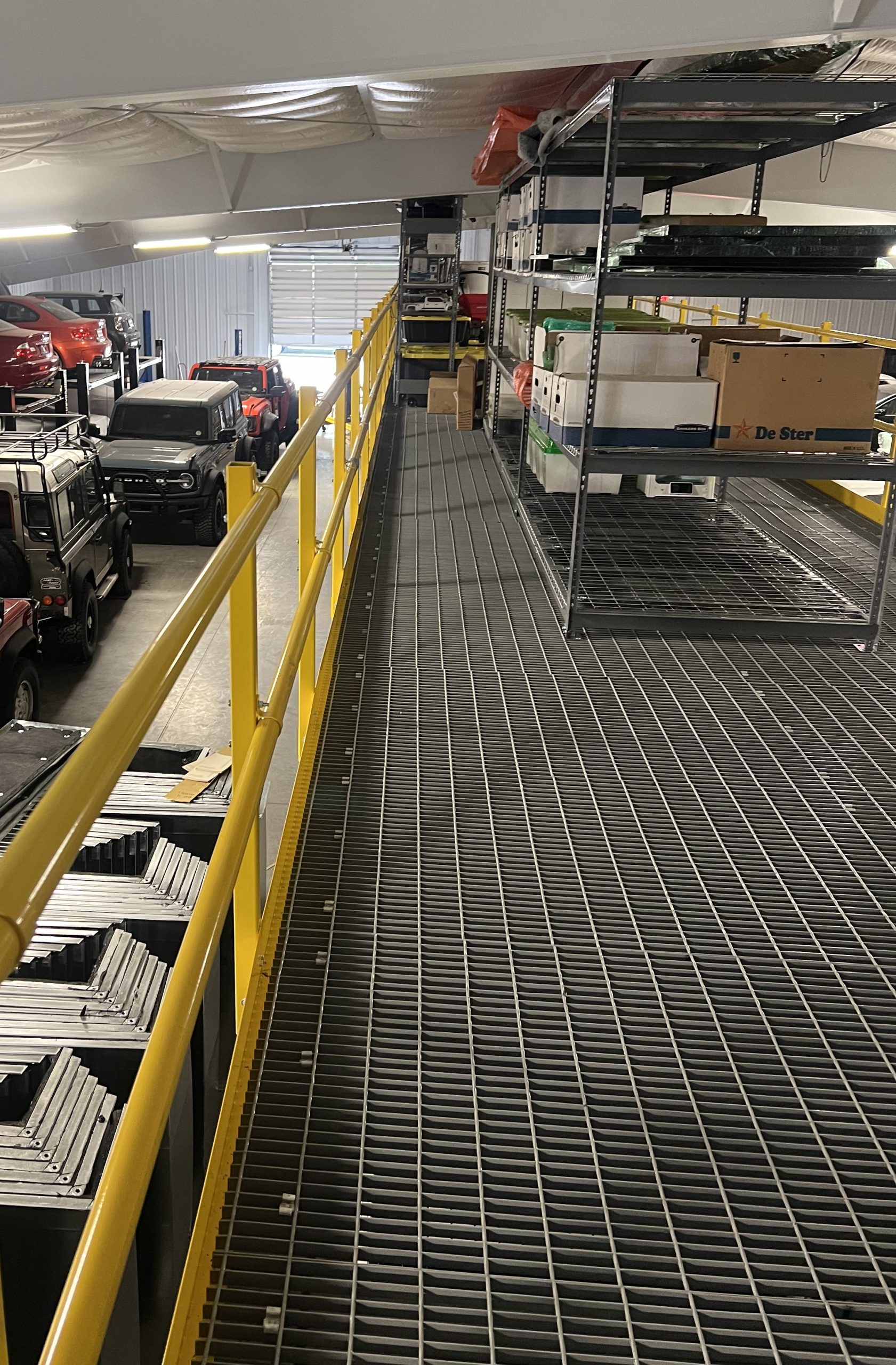

The 7-foot-high mezzanine spans 140 feet and adds 1,540 square feet of usable floor space. Industrial shelving units were installed beneath the mezzanine to ensure no loss of viable square footage. The upper deck provides additional storage capacity and flexible workspace for the parts department.

The system includes:

• 7′ H x 11′ W x 140′ L steel mezzanine

• 24 Steel Clip Shelving Units

• 7 Rivet-Span Shelving Units

• Perimeter handrails and kickplates

• Double swing gate for forklift access

• Two stair access points

• Complete professional installation

The Results: Increased Storage Density and Improved Workflow Efficiency

By building upward instead of outward, the dealership significantly improved storage density and operational flow. Inventory was redistributed across a wider footprint, reducing technician travel time and improving overall productivity.

Key outcomes include:

• 1,540 square feet of added floor space

• Improved parts accessibility for technicians

• Reduced retrieval time

• Maintained full use of existing ground-level workspace

• Enhanced safety and code compliance
